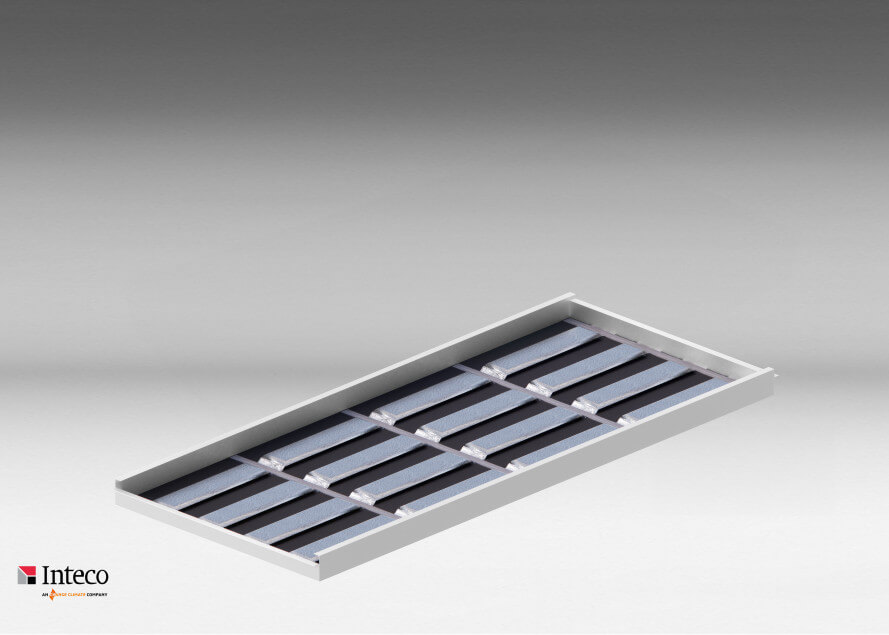

Phaseo Packs

A sustainable indoor environment with optimal acoustics

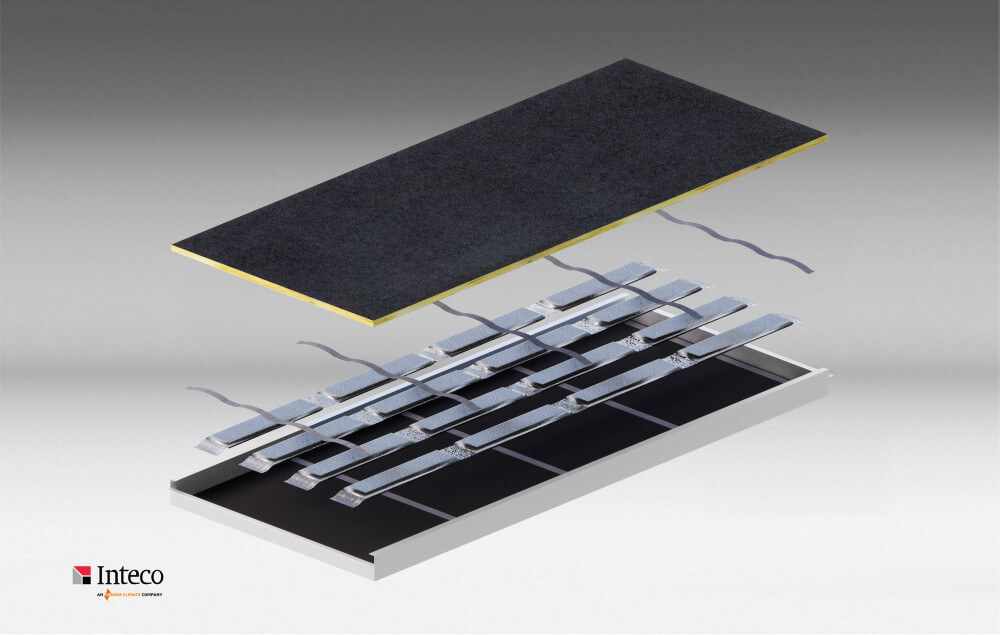

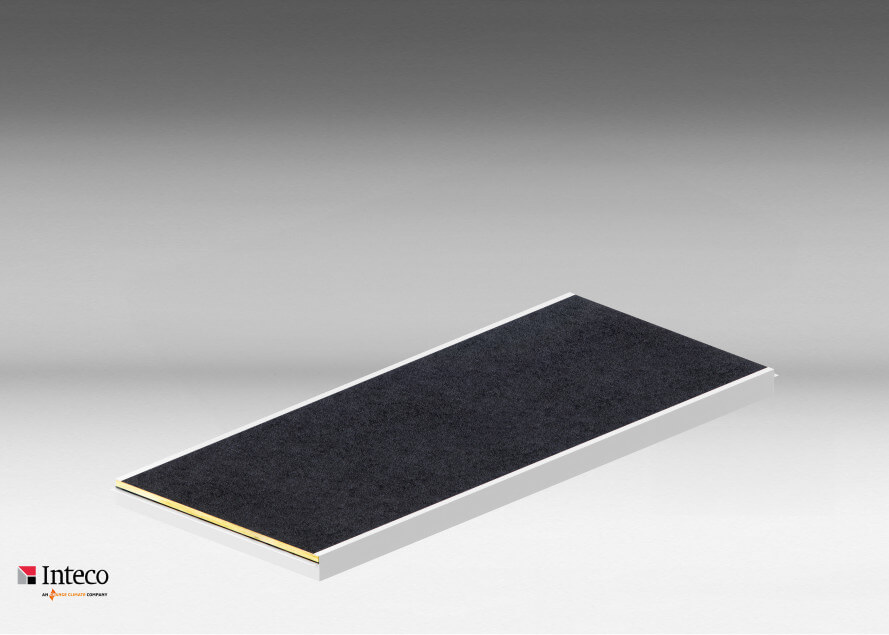

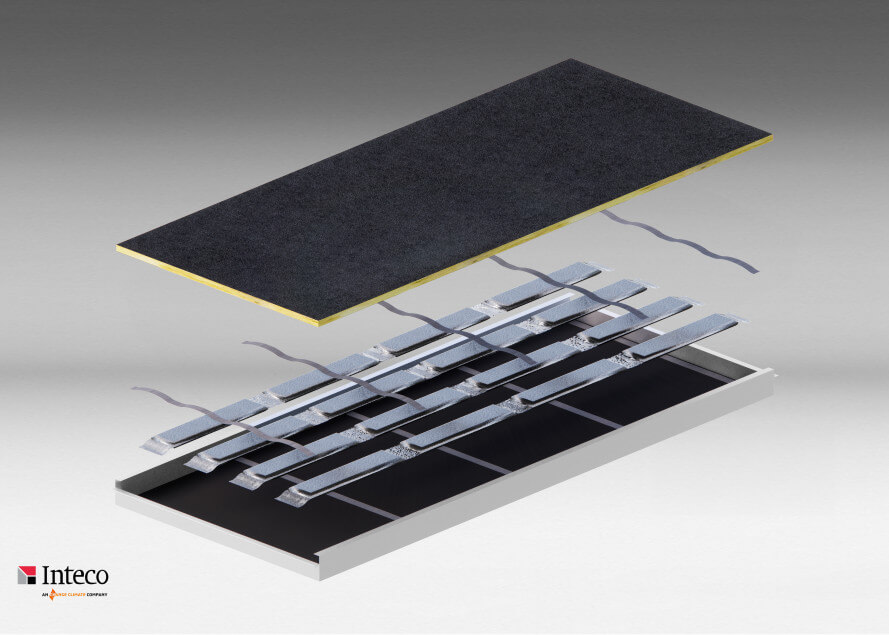

The Phaseo-Packs are a unique system, patented and developed by Orange Climate, that sustainably contributes to improving the indoor climate. Not only does this improve the climate in a room, it also significantly improves acoustics. The Phaseo Packs consist of environmentally friendly inorganic salt, mixed with water and encased in a package of aluminium laminate. This unique composition allows the temperature within a room to be controlled naturally.

How the Phaseo Packs work                                                                                                                                       The unique composition of the Phaseo Packs makes it possible to control the temperature in a room without using an external energy source. And that works as follows: the unique composition in the Phaseo Pack absorbs heat and melts at a set temperature and then retains this heat. During the melting process, the material absorbs significant amounts of heat from the environment, resulting in a cooler room. Once the outside temperature drops below the programmed value, the material solidifies and releases heat back into the environment, warming the room again.

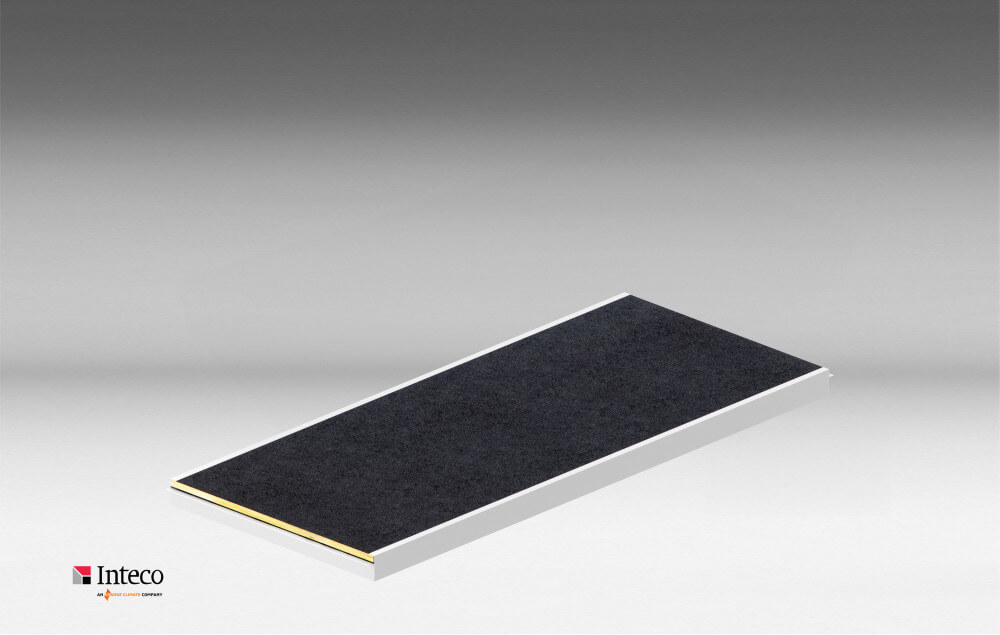

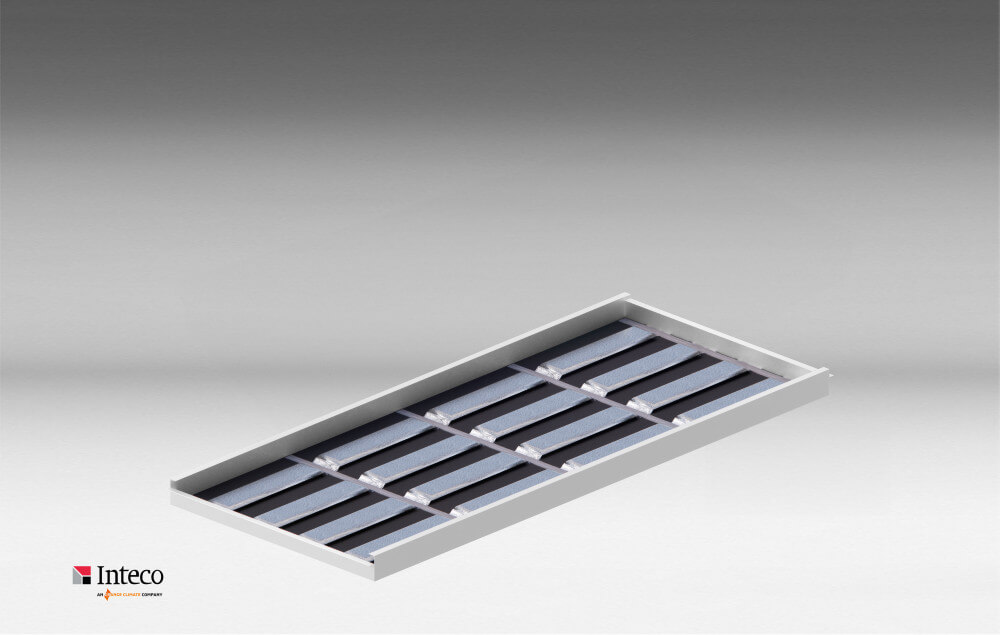

Easy to install                                                                                                                                                              Before the Phaseo Packs arrive on site, they are attached to the metal plates of the linear grid at Inteco's factory. This means that apart from attaching the ceiling components, no other installation tasks need to be performed. This simple process therefore makes Phaseo Packs suitable not only for new buildings, but also particularly suitable for renovations or alterations. With a service life of more than 40 years, no further operations are required after installation either. This therefore means that no further attention needs to be paid to the indoor climate for 40 years after installation.

The sustainable alternative                                                                                                                                     Thanks to the organic operation of Phaseo Packs to control the temperature in a room, no additional energy generator is needed to manage the temperature. This means the system puts no strain on the energy grid and there are no energy costs to run the Phaseo Packs. Purchasing Phaseo Packs actively contributes to sustainability and makes a positive impact on the environment.

Improve acoustics                                                                                                                                                           In addition to a comfortable indoor climate, you also want good acoustics? Then the Phaseo Packs offer the right solution. Compared to the Phaseo Elements, the Phaseo Packs offer more space for integrating sound-absorbing material without compromising on capacity. This results in an α-value between 0.80 and 0.90. This means not only a comfortable indoor environment, but also pleasant acoustics that improve intelligibility.

Sustainability, fire safety & certification

Production and environment
All ceiling products are manufactured according to the TAIM standard (Technischer Arbeitskreis Industrieller Metalldeckenhersteller). During the manufacturing process of the climate elements, very little production waste is released and 100% of the basic material is used. During soldering operations for the MeandRo element, the released gases are precisely extracted and filtered according to the strictest standards. All components of the ceiling and the climate element can be easily separated by material type and can be recycled into high-quality raw materials. The Inteco climate ceiling is ideally suited for use in projects where certification according to, for example, BREEAM is required.

Fire safety
To determine whether a building product falls into Euroclass B, C or D, two tests are required, the SBI test and the Ignitability of Small Flame test. A fire safety classification takes place in accordance with EN 13501-1. This involves determining fire growth and total heat production based on the results of the ignitability test and the values determined in the SBI test. The fire class for our CSP panels and Phaseo climate ceiling is: fire class (B), smoke class (s1) droplet class (d0).

Certifications
Inteco stands for quality and reliability. Hence we consider it important that our products and processes meet the highest standards and certifications. Inteco is ISO 9001 and ISO 14001 certified Our people are VCA certified The Inteco climate systems are tested in accordance with the applicable European standards, for example; EN 14240 / EN 14037 / EN ISO 7730.
